unbolt clutch and flywheel, mount to engine stand, drain oil from sump

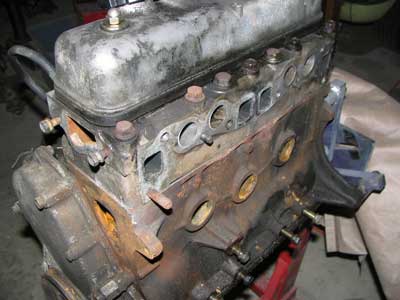

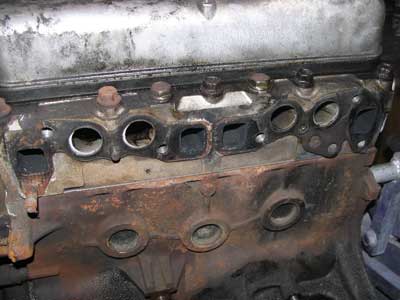

carbon can be seen where the exhaust gasket was leaking
14.10.07
4K rebuild
Doing a refresh on a low km 4K 1300cc toyota engine. A full rebuild not required due to only doing 136k in a kp61 starlet. So a quick strip down, check the bearings, flush out the water galleries, replace all the gaskets and seals (since they're leaking from 24years of ageing) and put er back together..
|
|

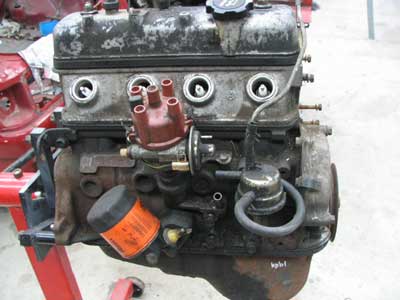

kp61 starlet turned up in local wrecker..so out comes engine and box :) unbolt clutch and flywheel, mount to engine stand, drain oil from sump |
|
|

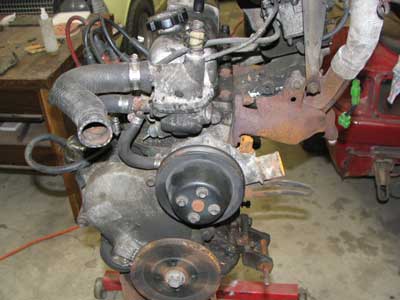

unbolt water pipes, thermostat housings, water pump, intake and exhaust systems. carbon can be seen where the exhaust gasket was leaking 14.10.07 |
|
|

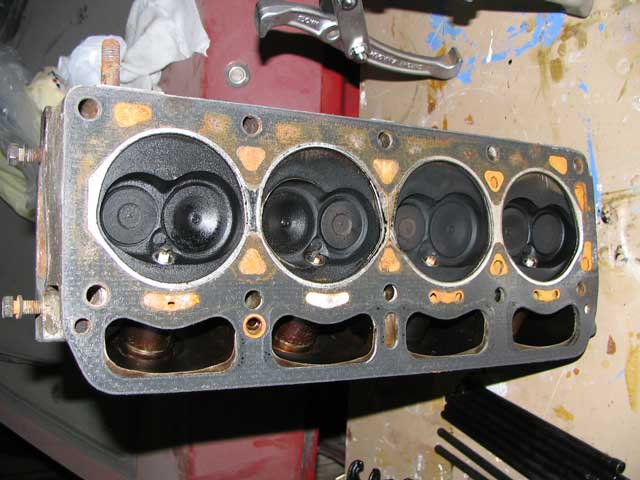

remove rocker cover, rockers and pushrods, unbolt head and lift away |
|

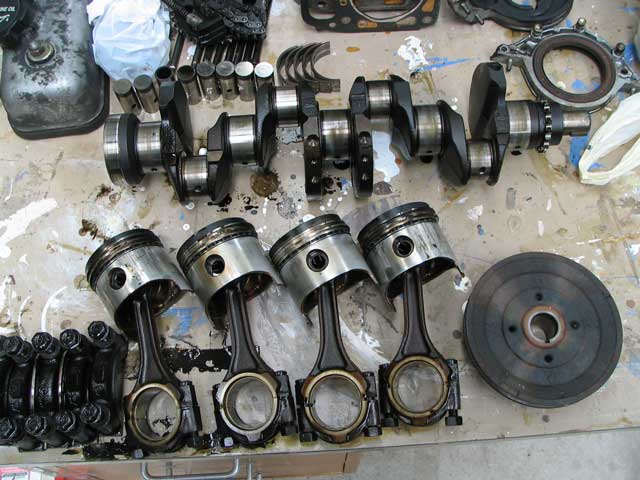

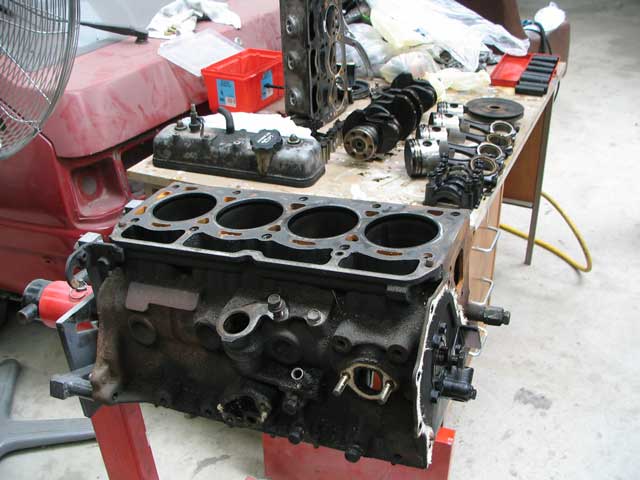

unbolt everything else and number in correct order | |
| check condition of everything, measure bores, journals etc for wear | ||
| block, crank and head sent to get cleaned. | ||
| buy new bearings, seals, gaskets, chain, tensioner, rings etc | ||
